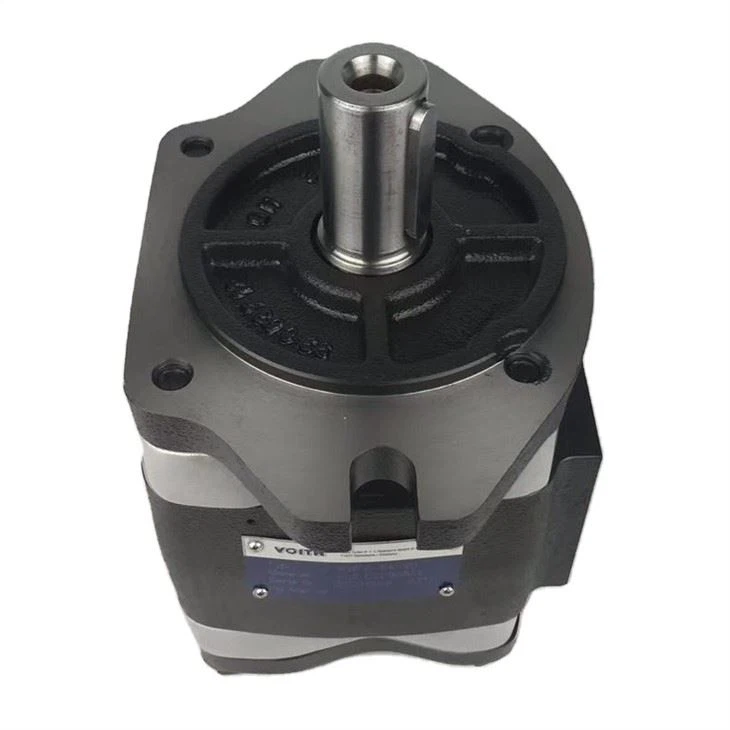

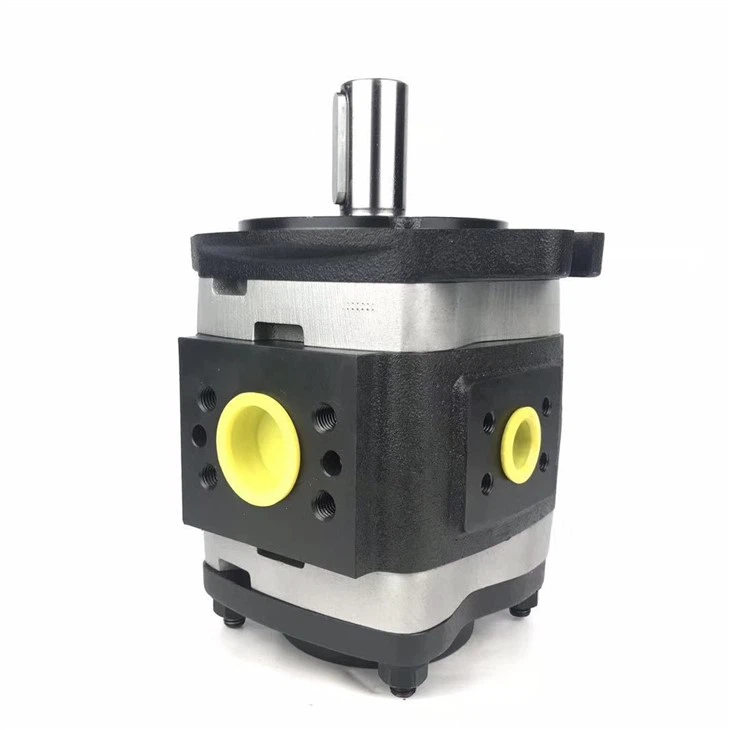

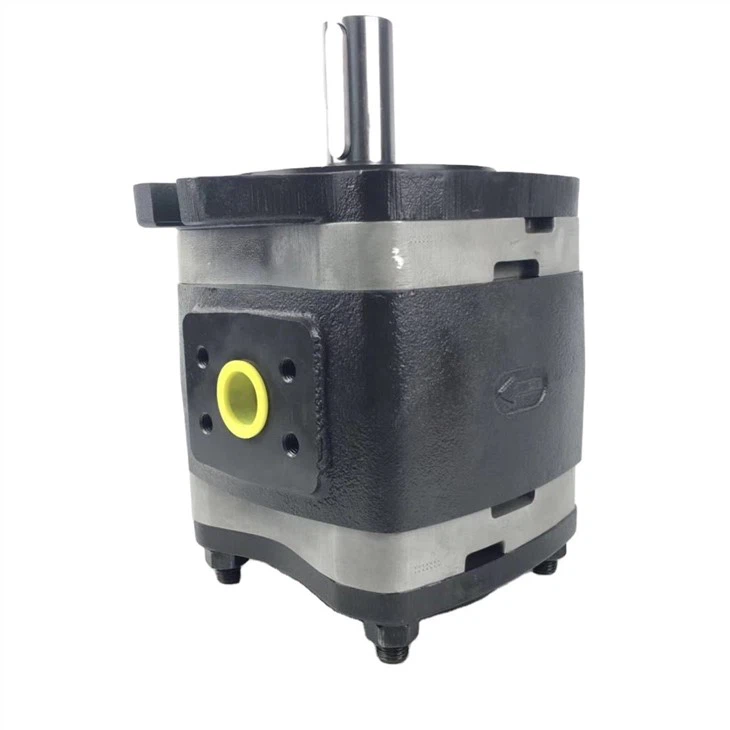

IPVAP5 Germany IPV IPVAP 5-50-101 Series Hydraulic Internal Gear Pump Oil Pump
USA professional engineer and with 5 utility models and 5 patents
Send Inquiry
Product Details ofIPVAP5 Germany IPV IPVAP 5-50-101 Series Hydraulic Internal Gear Pump Oil Pump
IPVAP5 Germany IPV IPVAP 5-50-101 Series Hydraulic Internal Gear Pump Oil Pump
| Type, size – delivery | Displace ment per revolution | Speed | Delivery | Pressures | ||||
| min. | max. | at 1500 min-1 | at n max | Continuous pressure | Peak pressure at 1 500 min-1 | Moment of inertia | ||
| [cm3] | [min-1] | [min-1] | [l/min] | [l/min] | [bar] | [bar] | [kg cm²] | |
| IPVP 3 – 3.5 | 3.6 | 400 | 3 600 | 5.4 | 13 | 330 | 345 | 0.34 |
| IPVP 3 – 5 | 5.2 | 400 | 3 600 | 7.8 | 18.7 | 330 | 345 | 0.42 |
| IPVP 3 – 6.3 | 6.4 | 400 | 3 600 | 9.6 | 23 | 330 | 345 | 0.49 |
| IPVP 3 – 8 | 8.2 | 400 | 3 600 | 12.3 | 29.5 | 330 | 345 | 0.58 |
| IPVP 3 – 10 | 10.2 | 400 | 3 600 | 15.3 | 36.7 | 330 | 345 | 0.7 |
| IPVP 4 – 13 | 13.3 | 400 | 3 600 | 19.9 | 47.9 | 330 | 345 | 2.25 |
| IPVP 4 – 16 | 15.8 | 400 | 3 600 | 23.7 | 56.9 | 330 | 345 | 2.64 |
| IPVP 4 – 20 | 20.7 | 400 | 3 600 | 31 | 74.5 | 330 | 345 | 3.29 |
| IPVP 4 – 25 | 25.4 | 400 | 3 600 | 38.1 | 91.4 | 300 | 330 | 3.7 |
| IPVP 4 – 32 | 32.6 | 400 | 3 600 | 48.9 | 117.4 | 250 | 280 | 4.44 |
| IPVP 5 – 32 | 33.1 | 400 | 3 000 | 49.6 | 99.3 | 315 | 345 | 8.62 |
| IPVP 5 – 40 | 41 | 400 | 3 000 | 61.5 | 123 | 315 | 345 | 10.2 |
| IPVP 5 – 50 | 50.3 | 400 | 3 000 | 75.4 | 150.9 | 280 | 315 | 11.6 |
| IPVP 5 – 64 | 64.9 | 400 | 3 000 | 97.3 | 194.7 | 230 | 250 | 14.4 |
| IPVP 6 – 64 | 64.1 | 400 | 2 600 | 96.1 | 166.7 | 300 | 330 | 25.73 |
| IPVP 6 – 80 | 80.7 | 400 | 2 600 | 121 | 209.8 | 280 | 315 | 30.9 |
| IPVP 6 – 100 | 101.3 | 400 | 2 600 | 151.9 | 263.4 | 250 | 300 | 36.1 |
| IPVP 6 – 125 | 126.2 | 400 | 2 600 | 189.3 | 328.1 | 210 | 250 | 43.7 |
| IPVP 7 – 125 | 125.8 | 400 | 2 500 | 188.7 | 314.5 | 300 | 330 | 84.05 |
| IPVP 7 – 160 | 160.8 | 400 | 2 500 | 241.2 | 402 | 280 | 315 | 102.6 |
| IPVP 7 – 200 | 202.7 | 400 | 2 500 | 304 | 503.8 | 250 | 300 | 119 |
| IPVP 7 – 250 | 251.7 | 400 | 2 500 | 377.5 | 629.3 | 210 | 250 | 144.5 |
IPVP3-3.5-101 IPVP3-5-101 IPVP3-6.3-101 IPVP3-8-101 IPVP3-10-101
IPVP4-13-101 IPVP4-16-101 IPVP4-20-101 IPVP4-25-101 IPVP4-32-101
IPVP5-32-101 IPVP5-40-101 IPVP5-50-101 IPVP5-64-101
IPVP6-64-101 IPVP6-80-101 IPVP6-100-101 IPVP6-125-101
IPVP7-125-111 IPVP7-160-111 IPVP7-200-111 IPVP7-250-111
IPV3-3.5-101 IPV3-6.3-101 IPV3-8-101 IPV3-10-101
IPV4-13-101 IPV4-16-101 IPV4-20-101 IPV4-25-101 IPV4-32-101
IPV5-32-101 IPV5-40-101 IPV5-50-101 IPV5-64-101
IPV6-64-101 IPV6-80-101 IPV6-100-101 IPV6-125-101
IPV7-125-101 IPV7-160-101 IPV7-200-101 IPV7-250-101
IPC4-20-101 IPC4-25-101 IPC4-32-101
IPC5-32-101 IPC5-40-101 IPC5-50-101 IPC5-64-101
IPC6-64-101 IPC6-80-101 IPC6-100-101 IPC6-125-101
IPC7-125-101 IPC7-160-101 IPC7-200-101 IPC7-250-101
IPVAP3-3.5-101 IPVAP3-6.3-101 IPVAP3-8-101 IPVAP3-10-101
IPVAP4-13-101 IPVAP4-16-101 IPVAP4-20-101 IPVAP4-25-101 IPVAP4-32-101
IPVAP5-32-101 IPVAP5-40-101 IPVAP5-50-101 IPVAP5-64-101
IPVS3-3.5-101 IPVS3-6.3-101 IPVS3-8-101 IPVS3-10-101
IPVS4-13-101 IPVS4-16-101 IPVS4-20-101 IPVS4-25-101 IPVS4-32-101
IPVS5-32-101 IPVS5-40-101 IPVS5-50-101 IPVS5-64-101
IPVS6-64-101 IPVS6-80-101 IPVS6-100-101 IPVS6-125-101
IPVS7-125-101 IPVS7-160-101 IPVS7-200-101 IPVS7-250-101
IPV3-3.5-100，IPV3-3.5-101，IPV3-5-100，IPV3-5-101，IPV3-6.3-100，IPV3-6.3-101，IPV3-8-100，IPV3-8-101，IPV3-10-100，IPV3-10-101，IPV4-13-100，IPV4-13-101，IPV4-16-100，IPV4-16-101，IPV4-20-100，IPV4-20-101，IPV4-25-100，IPV4-25-101，IPV4-32-100,IPV4-32-101，IPV5-40-100，IPV5-40-101，IPV5-50-100，IPV5-50-101，IPV5-64-100，IPV5-64-101，IPV6-64-100，IPV6-64-101，IPV6-80-100，IPV6-80-101，IPV6-100-100，IPV6-100-101，IPV6-125-100，IPV6-125-101，IPV7-125-100，IPV7-125-101，IPV7-160-101，IPV7-160-111，IPV7-200-101，IPV7-200-111，IPV7-250-101,IPV7-250-111 VOITH
