Product Details ofPGH Series Hydraulic Internal Gear Oil Pump PGH2 PGH3 PGH4 PGH5 PGH5-21/160RE07VU2 fixed displacement pump

Fujian Zhenyuan Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of pgh series hydraulic internal gear oil pump pgh2 pgh3 pgh4 pgh5 pgh5-21/160re07vu2 fixed displacement pump in China. We warmly welcome you to wholesale high quality customized products at low price from our factory. If you have any enquiry about quotation, please feel free to email us.



1

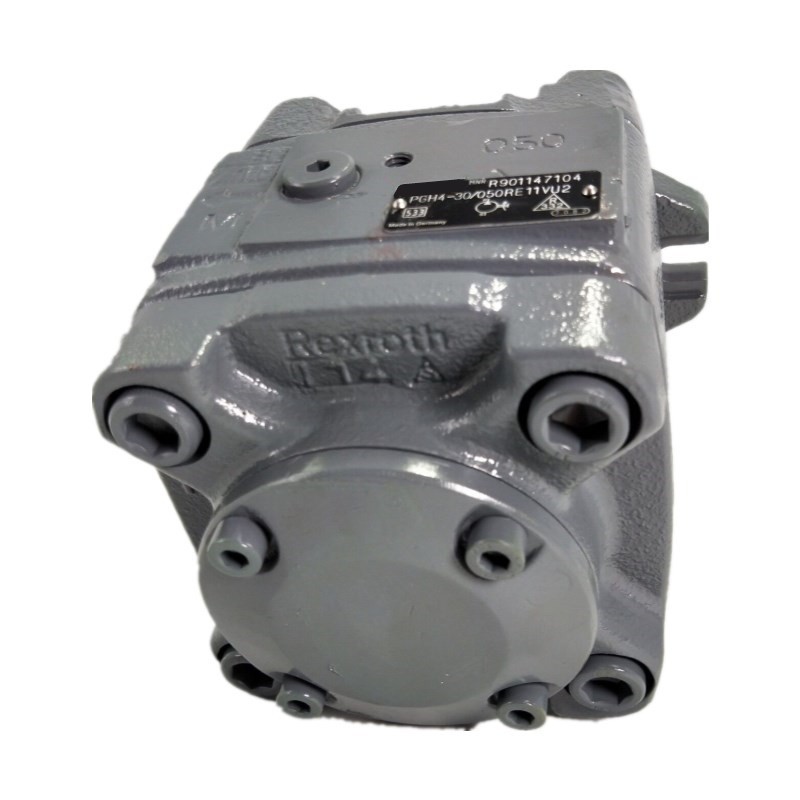

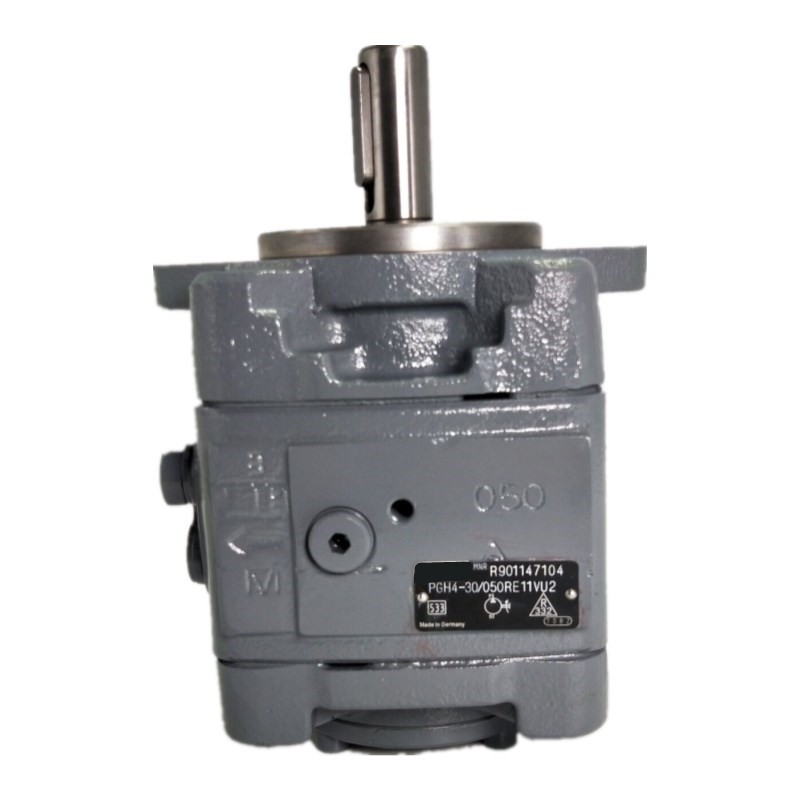

PGH Series hydraulic internal gear oil pump PGH2 PGH3 PGH4 PGH5 PGH5-21/160RE07VU2 fixed displacement pump
Describe

Frame size 4 and 5

Component series: 3X

Maximum operating pressure 350 bar

Maximum displacement volume 250 cm3

Hydraulic pumps of type PGH.-3X are gap-compensated internal gear pumps with fixed displacement.
They mainly consist of: Mounting flange, housing,  cover with through-drive, pinion shaft, internal  gear, sliding bearings, axial washers and stop pin as well as the radial compensation consisting of segment, segment support and the seal rolls.
The hydro-dynamically mounted pinion shaft drives the  toothed internal gear in the direction of rotation shown. The tooth clearances opening in the suction area prime the fluid. The fluid is transported into the tooth clearances of pinion and internal gear, from the suction area into the pressure area.
The radial compensation elements consist of segment,  segment support and seal rolls.
