Fujian Zhenyuan Hydraulic Equipment Co., Ltd. is one of the leading manufacturers and suppliers of hydraulic fixed displacement vane pumps pvv series cutting machine hydraulic punch press oil pump pvv5-1x/162rj15dmc in China. We warmly welcome you to wholesale high quality customized products at low price from our factory. If you have any enquiry about quotation, please feel free to email us.

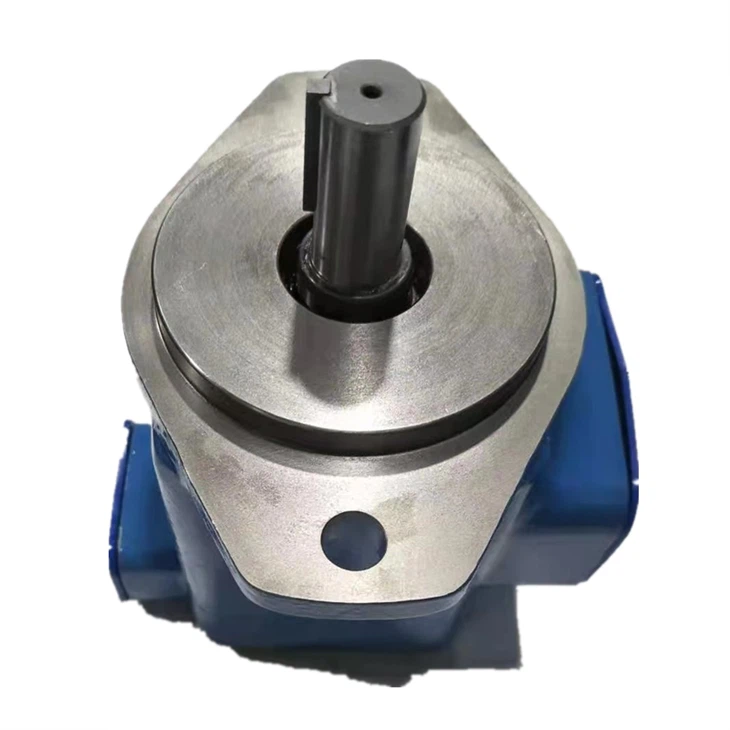

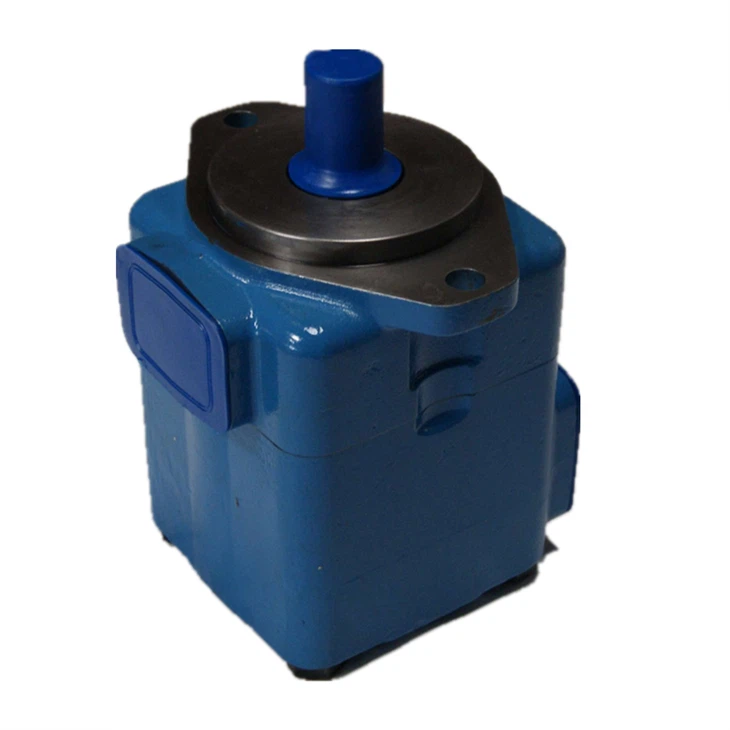

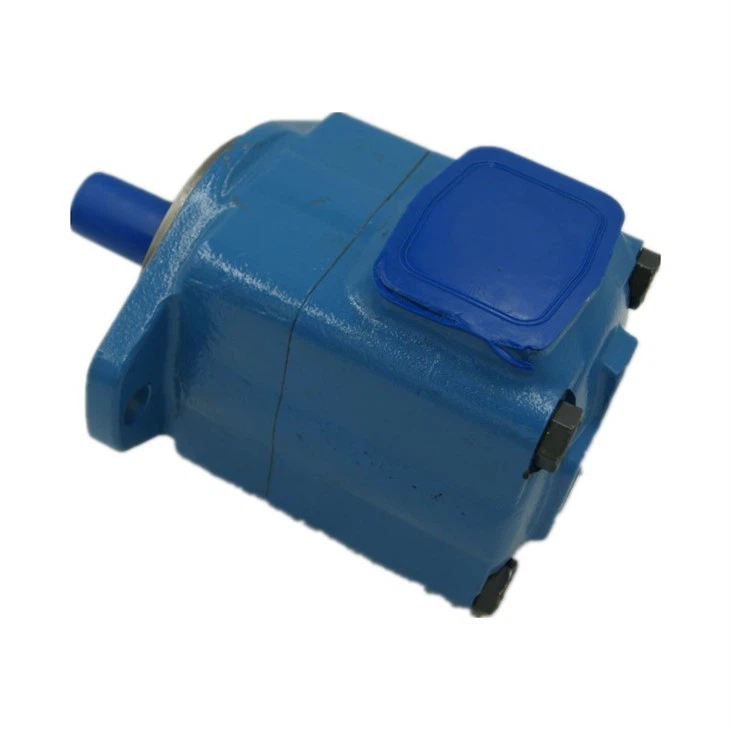

Hydraulic fixed displacement vane pumps PVV Series cutting machine hydraulic punch press oil pump PVV5-1X/162RJ15DMC

Data sheet

Maximum operating pressure 210 bar

Maximum displacement 18 to 193 cm3

The rotor is fitted onto the splines of the drive shaft which rotates inside the stator ring. The vanes are fitted into slots in the rotor and are pressed onto the inner surface of the stator ring by centrifugal force as the rotor turns. The displacement chambers are sealed on the sides by the control plates. Due to the double extentric form of the stator ring there are two pressure and two suction chambers opposite to each other. The drive shaft is thereby hydraulically unloaded. It only has to carry the torque forces. The vanes are partially unloaded as they pass through the suction areas. This unloading results in reduction in wear and makes it possible to obtain a high efficiency.
