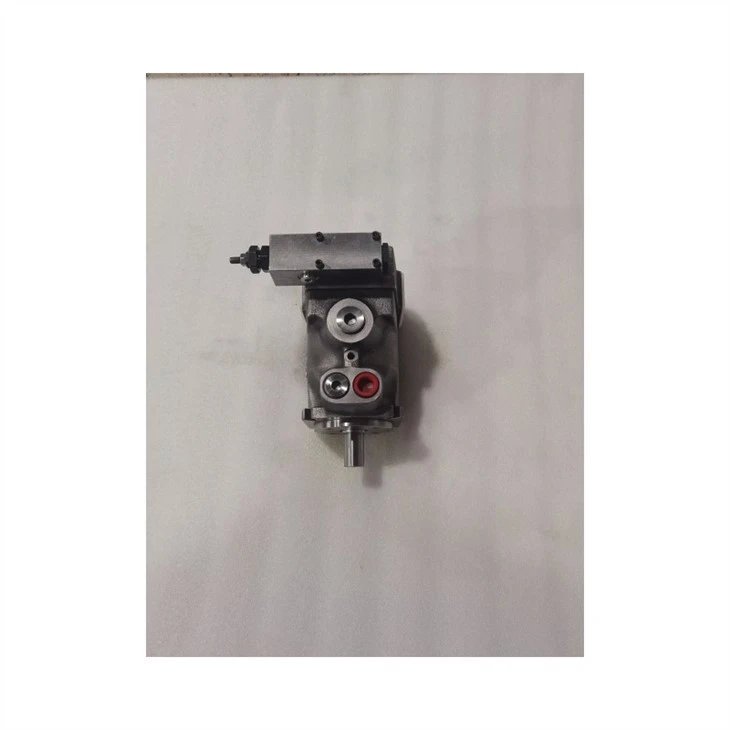

PARKER PV020R1K1T1NMMC Piston Pump Hydraulic Pump Oil Pump PV016/ PV0/PV032/PV040/PV046/PV063

PARKER PV020R1K1T1NMMC Piston pump hydraulic pump oil pump PV016/ PV0/PV032/PV040/PV046/PV063

Technical Features • Low noise level • Fast response • Service-friendly • High self-priming speed • Compact design • Through drive for 100 % nominal torque

Standard pump is not painted. Black painted pump and ATEX (excludes electronic components) certification (Zone 2) is available as special option. For additional informations please contact Parker Hannifin.
Note: The highest fluid temperature will be at the drain port of the pump, up to 25 °C higher than in the reservoir.
Seals Check hydraulic fluid specification for chemical resistance of seal material. Check temperature range of seal material and compare with max. system and ambient temperature
Fluid recommendations Premium quality hydraulic mineral fluid is recommended, like HLP oils to DIN 51524 (part 2 & 3) or ISO6743/4 (HM & HV). Brugger-value recommended to be 30 N/mm2 minimum for general application and 50 N/ mm2 for heavily loaded hydraulic equipment and fast cycling machines and/or high dynamic loads, measured in accordance with DIN 51 347-2. See also Document MSG30-3248/UK Parker Hydraulic Fluids.
Viscosity The normal operating viscosity should range between 16 and 100 mm2/s (cSt). Max. start-up viscosity is 1000 mm2/s (cSt).
